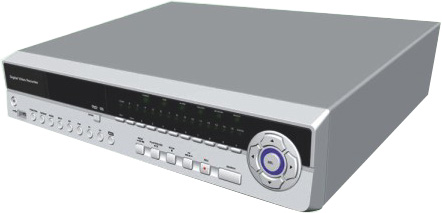

UD-409
FEATURES

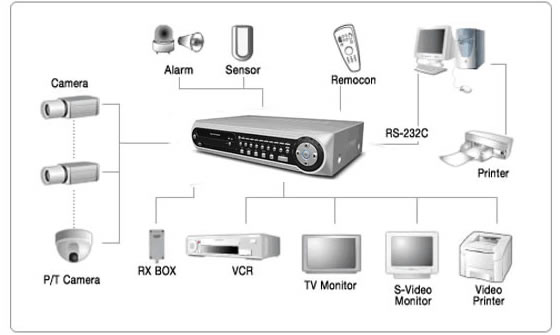

Sophisticated Network Functions: remote surveillance, remote playback, remote recording, remote control DVR
Various recording mode: timer, motion detection, alarm , and watermark Recording picture quality, resolution & recording frame rate configurable

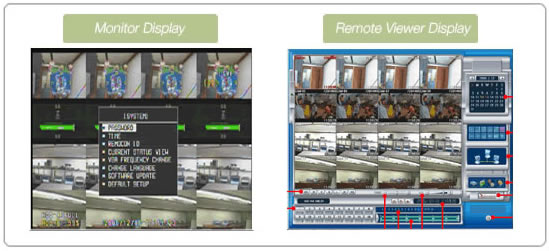

Flexible Display mode : Auto Switch, PIP, Full Screen, Quad
Multi-method searching: Time, Recording event (Alarm, motion detection ), recording list
Triplex :monitoring, recording or playback simultaneously.
Easy Backup: thr
|
SPECIFICATIONS
Compression format: MEPG-4
Video output: Composite��.0V p-p/75Ω，BNC×2 S-VIDEOX1, VGAX1
Video input: Composite��.0V p-p/75Ω，BNC×9
Display Resolution: 720*576 (PAL) 720*480 (NTSC)
Record Resolution: 704*576 704*288 352*288 (PAL) 720*480 720*240 360*240 (NTSC)
Frame Ratea: Max 120 fps under 360x240 Max 60 fps under 720x240 Max 30 fps under 720x488
Audio inputA: -8dB 22k, RCA X4
Audio output: -8dB -- -92dB, RCA X1
Alarm input: NO or NC 4CH
Alarm output: NO or NC�� channel input
Record Mode: Manual / Sensor /Timer / Motion detection Simplex/Duplex/Triplex Triplex
Network Interface: RJ45 (LAN, INTERNET)
PTZ control : YES
Communication port: RS485
Hard disk info : Support Max 4 HDDs W/O DVD-RW or 2 HDDS with DVD-RW
Remote controller : YES
Backup : USB, DVD-RW or CD-RW optional
Power supply : 90V—230V
|
