DVRS - 4CH DVR - UD-2001MS

UD-2001MS

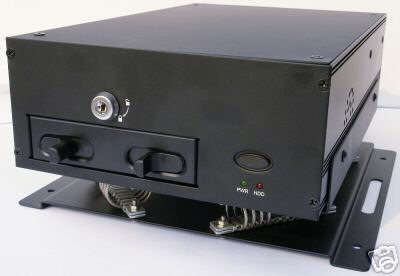

4CH MJPEG DVR for CAR
High quality color video at 30fps recording/playback quad mode
With motion detection and video loss alarm function
With power recovery auto-record function
Including PC playback software
Recording and compressing video signal real time
With IR remote control unit
Used the professional of shock absorber

$ 299.00 Back
Quantity:

Model                         UD-2001MS

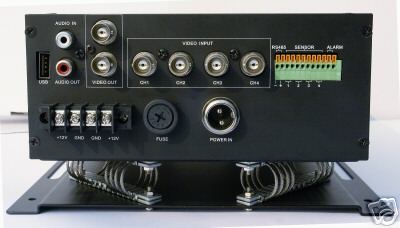

Video input format          NTSC/PAL: BNC 4CH in/ 2CH out (Composite）
Display speed (Quad mode)   NTSC:120fps PAL:100fps
Display resolution          NTSC:720×480 PAL:720×576
Record speed (Quad mode)   NTSC:Max.30fps；PAL:Max.25fps
Record speed (Each mode)   NTSC:Max.7.5fps；PAL: Max.6.25fps
Recording resolution   NTSC: 320x112, 640x224 PAL: 320x136, 640x272
Compression format   MJPEG (12~20kb/frame
HDD capacity          Over 200Gb, ATA-100 port, 2.5 inch*1
Recording time         14 days with 120 Gb HDD @ 7fps
Recording mode         Continuous, Motion detection, Sensor activated, time scheduled
Sensor alarm         4CH input��CH output
USB2.0                Yes
PTZ                RS-485
Audio                 1CH input & output
VGA     Optional
Power supply         Via car battery��~35VDC）
Dimension (mm)         285×235×90mm
