DVRS > 4CH DVR > DVC-LTD431LCDH6KIT

View additional images

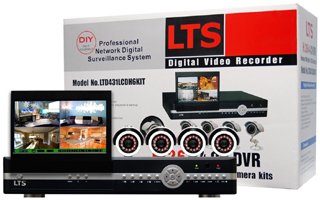

DVC-LTD431LCDH6KIT

4-Ch H.264 Realtime Network DVR Complete System with 7 inch LCD, 4 CCD Cameras, 4 x 60Ft RG59 Pre-made Cables, 250GB SATA HDD and IR Remote Control

$ 699.00          Back

Quantity:


SPECIFICATION DIGITAL VIDEO RECORDER * Build-in 7" Retractable LCD Monitor * Pre-Installed 250GB SATA Hard Drive Compression H.264 Video I/O BNC 4-Channel Inputs/ 1-Channel Outputs Audio I/O RCA 4-Channel Inputs/ 1-Channel Outputs Video Output 1 BNC Display Resolution NTSC: 720 x 480 PAL: 720 x 576 Display Frame Rate NTSC: 120fps PAL: 100fps Record Resolution NTSC: 720 x 240/ 360 x 240 PAL: 720 x 288/ 360 x 288 Record Frame Rate NTSC: 120fps PAL: 100fps HDD Interface 1 SATA 250GB HDD Pre-Installed, Max. up to 500GB Record Modes Continuous, Motion Detection, Sensor Triggered, Time Schedule Record Picture Quality Low, Normal, High, Highest Sensor & Alarm 4-Channel Inputs / 1-Channel Output PTZ Control RS-485 Network Interface RJ45, TCP/IP USB Interface USB 2.0 Display Device 7" Retractable LCD Monitor Backup Device USB 2.0 Thumb Drive (Individual Channle AVI Format Supported) Remote Control IR Remote Control Power Supply DC 12V (Adapter Included) CAMERAS Image Sensor > 1/4" Sony Super HAD CCD Minimum Illuminance 0 LUX with 12 x IR LEDs Signal System NTSC Lens 2 x 3.6mm and 2 x 6.0mm Power Supply DC12V Resolution 420TVL Dimensions 2.3" x 4.1" Operation Temperature 14°F~ 122°F Operation Humidity 10%~ 80% Video Output 1.0 Vp-p, 75 Ohms Electronic Shutter 1/50(1/60) - 1/100,000 second S/N Ratio >= 48db PACKAGING Dimensions 13.5" x 20" x 8.5" Weight 21.20 lbs
