Surveillance Kit > 4ch Kit > DVC-LTD24HTDK

View additional images

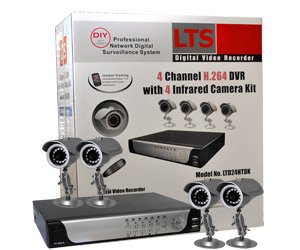

DVC-LTD24HTDK

4 Channel H.264 Realtime Network DVR Complete System with 4x CCD Night Vision Weather Proof Cameras, USB Mouse, and Installation Kit

$ 599.00          Back

Quantity:


* Pre-installed 320GB SATA Hard Drive




* Remote View via 3G Phone- Windows Mobile, Symbian and iPhone




* Email Alert and Day-Light Saving Time




Compression  H.264




Video Input  BNC 4-Channel Inputs




Video Output  BNC x 1




Audio  RCA Inputs and Output




Display Resolution  NTSC: 720 x 480 PAL: 720 x 576




Display Frame Rate  NTSC: 120fps PAL: 100fps




Record Resolution NTSC: 720 x 240/ 360 x 240 PAL: 720 x 288/ 360 x 288




Record Frame Rate  NTSC: 120fps PAL: 100fps




HDD Interface  1 SATA 320GB HDD Pre-Installed, Max. up to 500GB




Record Modes  Continuous, Motion Detection, Sensor Triggered, Time Schedule




Record Picture Quality  Best, Fine, Normal




Channel Playback  Up To 4 Channels




Network Interface  RJ45, TCP/IP




Network Remote Users  Up to 20 Users Simultaneously




USB Interface  USB 2.0 x 2 (Mouse and Thumb Drive)




Backup Device  USB 2.0 Thumb Drive




Remote Control  IR Remote Control




Power Supply  DC 19V (Adapter Included)




CAMERAS




Image Sensor  1/4" Sony Super HAD CCD




Minimum Illuminance  0 LUX with 12 x IR LEDs




Signal System  NTSC




Lens  3.6mm Fixed Lens




Resolution  420TVL




Dimensions  2.68" x 3.62"x 2.68"




Operation Temperature  14°F~ 104°F




Video Output  1.0 Vp-p, 75 Ohms




Electronic Shutter  1/50(1/60) - 1/100,000 second




S/N Ratio  >= 48db




PACKAGING








Package Contents  LTD7724HT




  IR cameras X 4 (with 3.6mm Fixed Lens)




  User Manual




  Software CD




  Camera Cables x 4 (60 ft)




  Power Supply for DVR




  4-way Splitter Cable




  Cameras Stands x 4




  320GB SATA Hard Drive Pre- Installed




  Remote Control




Dimensions (Package)  14.30" x 7.75" x 16"




Weight (Package)
